WX960 Tow Behind Engine Powered Log Splitter 3 Wheel Offroad Use

Price: $5,495.00
  • Item #: WLWX960
* Marked fields are required.
Qty: *



Free Shipping on this item to locations with normal delivery access in the U.S. 48 states; locations in Alaska, Hawaii, and outside the U.S. require additional shipping charges. Locations with limited access may require pickup at your local terminal for free shipping.

For Truck shipments, you must be able to unload the items at the delivery point (lift gate service is extra, please order if needed). Delivery pickup at the terminal can also be requested.

*We have a credit card sales limit of $1500.00 or less. All orders over $1500.00 should be paid for by personal, business, or cashier's check, postal money order(s) or finance contract (see our web page for financing options).

All items paid for by credit card and shipped by UPS are sent signature required. If no one will be at the location for delivery, then payment should be by check, so the package can be delivered without a signature.

Features/Specifications



Hydraulic Powered Woodsplitters

The Hydraulic Powered Wood Splitters are available as either engine powered tow behind models or tractor mounted and tractor hydraulics powered models. Several of the tow behind versions are capable of slitting wood in both the horizontal and vertical position; there are horizontal only models, and either a vertical or horizontal tractor mounted model. The engine powered models use ultra-reliable Honda Engines, and tractor mounted units easily connect to your tractor's auxilliary hydraulic outlets. We have a model to fit your needs whether for home use or commerical use.

Trailer Mounted Logsplitters - 900 Series

    • How To Calculate Cycle Time On The Logsplitters
    • Formula is: 3.1416 x cylinder rod radius squared x Length of cylinder = Volume measured in Cubic Inches
    • Cubic Inches convert to Gallons at 231 cubic inches per one gallon.
    • The volume in gallons will be the volume that fills the cylinder on the extension stroke. Dividing the output of either your tractor's hydraulic pump divided by the volume required when extending the cylinder will give you the time for the stroke on extension, and then multiply that by 2 for total cycle time and this will give you a good measurement for cycle time.
    • Here is an example for the model 310 on our web page: www.wikco.com/wood.html
    • 3.1416 x 4 inch cylinder rod diameter divided by 2 = 2 and then squared = 4 x length of cylinder (24 inches) = 301.44 cubic inches
    • 301.44 cubic inches divided by 231 cubic inches = 1.3 gallons volume in cylinder
    • Now lets use the minimum 10 gallons per minute required to efficiently operate this unit - so 1.3 gallons of volume on the cylinder extension stroke divided by 10 gallons per minute pumping capacity = .13 minutes, 60 seconds per minute x .13 = 7.8 seconds for the extension stroke at that volume, multiply x 2 = 15.6 seconds total cycle time, this will give you a good estimate to compare different models by.
    • The last variable is pressure. On the logsplitters we also give the pressure required from the pump as well. If your pump also meets the minimum pressure requirement, then this estimate will be accurate.
    • An increase in gallons per minute will decrease cycle time, a decrease in gpm will increase cycle time, and again you want to be above the minimum recommended shown for each model
    • If your hydraulic capacity doesnot meet the minimum we show then you need to look at a different model of splitter from our list to match to your tractor, or consider an engine powered model.

Horizontal Logsplitter Mounted On Three Tire Trailer For Off-Road Use Only, With Hydraulic Log Lift Cradle, 36 Inch Long Log Capacity

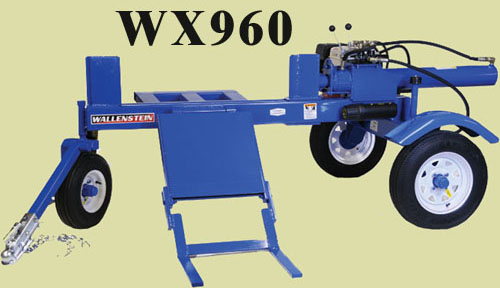

Model WX960: Horizontal logsplitter mounted on 3 tire cart for off-road use only, has clevis hitch, has hydraulic loglift, 4.5 inch x 36 inch splitting cylinder with 25 tons of splitting force, powered by 9 hp Honda GX series engine, wt. is 920 lbs.



PLEASE ALLOW 3 WEEKS BEFORE SHIPMENT ON THIS ITEM
